Schema documentation for component sdc4:XdDouble

Showing:

Diagrams

Instances

Model

Properties

Source

Element sdc4:XdDouble

Namespace

https://semanticdatacharter.com/ns/sdc4/

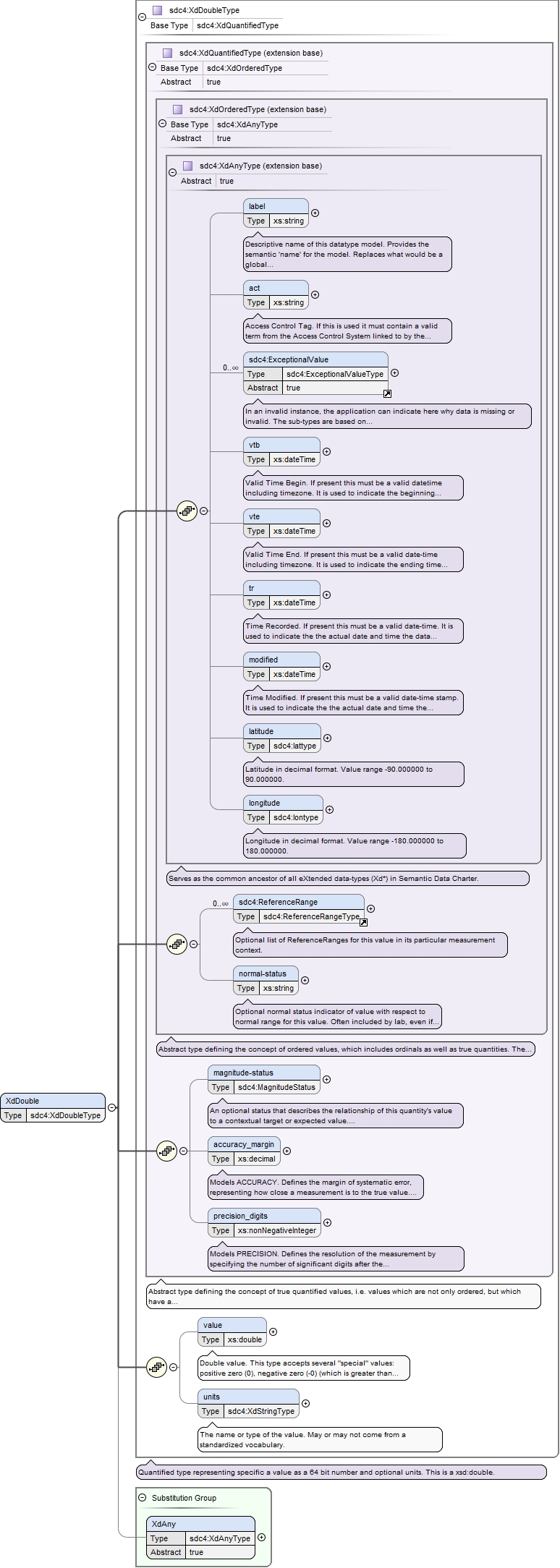

Diagram

Type

sdc4:XdDoubleType

Type hierarchy

sdc4:XdAnyType
- sdc4:XdOrderedType
  - sdc4:XdQuantifiedType
    - sdc4:XdDoubleType

Properties

content

complex

Substitution Group Affiliation

sdc4:XdAny

Model

label{0,1} , act{0,1} , sdc4:ExceptionalValue* , vtb{0,1} , vte{0,1} , tr{0,1} , modified{0,1} , latitude{0,1} , longitude{0,1} , sdc4:ReferenceRange* , normal-status{0,1} , magnitude-status{0,1} , accuracy_margin{0,1} , precision_digits{0,1} , value{0,1} , units{0,1}

Children

accuracy_margin, act, label, latitude, longitude, magnitude-status, modified, normal-status, precision_digits, sdc4:ExceptionalValue, sdc4:ReferenceRange, tr, units, value, vtb, vte

Instance

<sdc4:XdDouble xmlns:sdc4="https://semanticdatacharter.com/ns/sdc4/">
  <label>{0,1}</label>
  <act>{0,1}</act>
  <sdc4:ExceptionalValue>{0,unbounded}</sdc4:ExceptionalValue>
  <vtb>{0,1}</vtb>
  <vte>{0,1}</vte>
  <tr>{0,1}</tr>
  <modified>{0,1}</modified>
  <latitude>{0,1}</latitude>
  <longitude>{0,1}</longitude>
  <sdc4:ReferenceRange>{0,unbounded}</sdc4:ReferenceRange>
  <normal-status>{0,1}</normal-status>
  <magnitude-status>{0,1}</magnitude-status>
  <accuracy_margin>{0,1}</accuracy_margin>
  <precision_digits>{0,1}</precision_digits>
  <value>{0,1}</value>
  <units>{0,1}</units>
</sdc4:XdDouble>

Source

<xs:element name="XdDouble" substitutionGroup="sdc4:XdAny" type="sdc4:XdDoubleType">
  <xs:annotation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdDouble">
        <rdfs:subClassOf rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMS"/>
        <sdc4:isCMSOf rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdDoubleType"/>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMS"/>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
