Schema documentation for component sdc4:XdFile

Showing:

Diagrams

Instances

Model

Properties

Source

Element sdc4:XdFile

Namespace

https://semanticdatacharter.com/ns/sdc4/

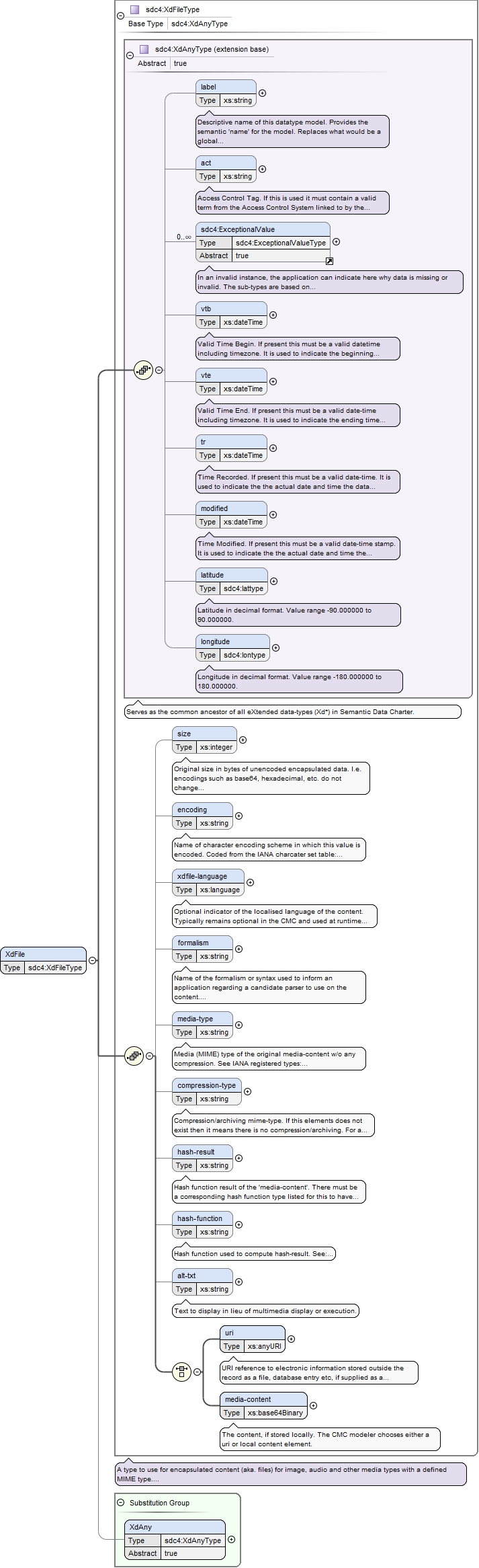

Diagram

Type

sdc4:XdFileType

Type hierarchy

sdc4:XdAnyType
- sdc4:XdFileType

Properties

content

complex

Substitution Group Affiliation

sdc4:XdAny

Model

label{0,1} , act{0,1} , sdc4:ExceptionalValue* , vtb{0,1} , vte{0,1} , tr{0,1} , modified{0,1} , latitude{0,1} , longitude{0,1} , size{0,1} , encoding{0,1} , xdfile-language{0,1} , formalism{0,1} , media-type{0,1} , compression-type{0,1} , hash-result{0,1} , hash-function{0,1} , alt-txt{0,1} , (uri | media-content)

Children

act, alt-txt, compression-type, encoding, formalism, hash-function, hash-result, label, latitude, longitude, media-content, media-type, modified, sdc4:ExceptionalValue, size, tr, uri, vtb, vte, xdfile-language

Instance

<sdc4:XdFile xmlns:sdc4="https://semanticdatacharter.com/ns/sdc4/">
  <label>{0,1}</label>
  <act>{0,1}</act>
  <sdc4:ExceptionalValue>{0,unbounded}</sdc4:ExceptionalValue>
  <vtb>{0,1}</vtb>
  <vte>{0,1}</vte>
  <tr>{0,1}</tr>
  <modified>{0,1}</modified>
  <latitude>{0,1}</latitude>
  <longitude>{0,1}</longitude>
  <size>{0,1}</size>
  <encoding>{0,1}</encoding>
  <xdfile-language>{0,1}</xdfile-language>
  <formalism>{0,1}</formalism>
  <media-type>{0,1}</media-type>
  <compression-type>{0,1}</compression-type>
  <hash-result>{0,1}</hash-result>
  <hash-function>{0,1}</hash-function>
  <alt-txt>{0,1}</alt-txt>
  <uri>{1,1}</uri>
  <media-content>{1,1}</media-content>
</sdc4:XdFile>

Source

<xs:element name="XdFile" substitutionGroup="sdc4:XdAny" type="sdc4:XdFileType">
  <xs:annotation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdFile">
        <rdfs:subClassOf rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMS"/>
        <sdc4:isCMSOf rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdFileType"/>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMS"/>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
