Schema documentation for component sdc4:XdString

Showing:

Diagrams

Instances

Model

Properties

Source

Element sdc4:XdString

Namespace

https://semanticdatacharter.com/ns/sdc4/

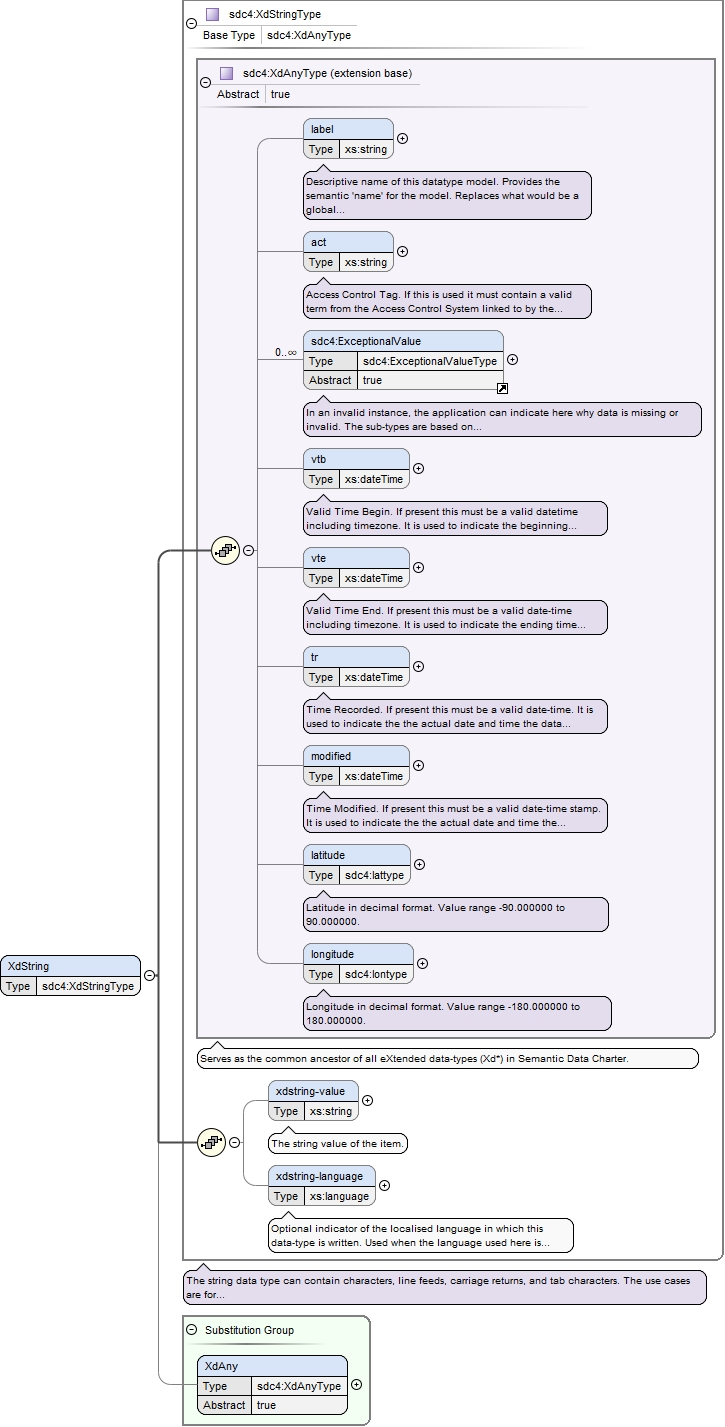

Diagram

Type

sdc4:XdStringType

Type hierarchy

sdc4:XdAnyType
- sdc4:XdStringType

Properties

content

complex

Substitution Group Affiliation

sdc4:XdAny

Model

label{0,1} , act{0,1} , sdc4:ExceptionalValue* , vtb{0,1} , vte{0,1} , tr{0,1} , modified{0,1} , latitude{0,1} , longitude{0,1} , xdstring-value{0,1} , xdstring-language{0,1}

Children

act, label, latitude, longitude, modified, sdc4:ExceptionalValue, tr, vtb, vte, xdstring-language, xdstring-value

Instance

<sdc4:XdString xmlns:sdc4="https://semanticdatacharter.com/ns/sdc4/">
  <label>{0,1}</label>
  <act>{0,1}</act>
  <sdc4:ExceptionalValue>{0,unbounded}</sdc4:ExceptionalValue>
  <vtb>{0,1}</vtb>
  <vte>{0,1}</vte>
  <tr>{0,1}</tr>
  <modified>{0,1}</modified>
  <latitude>{0,1}</latitude>
  <longitude>{0,1}</longitude>
  <xdstring-value>{0,1}</xdstring-value>
  <xdstring-language>{0,1}</xdstring-language>
</sdc4:XdString>

Source

<xs:element name="XdString" substitutionGroup="sdc4:XdAny" type="sdc4:XdStringType">
  <xs:annotation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdString">
        <rdfs:subClassOf rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMS"/>
        <sdc4:isCMSOf rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdStringType"/>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMS"/>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
