Element sdc4:XdCountType / value
Namespace No namespace
Annotations

Integer value of the counted items.
Diagram
Diagram
Type xs:integer
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element maxOccurs="1" minOccurs="0" name="value" type="xs:integer">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Integer value of the counted items.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdCountType/xdcount-value">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdCountType"/>
        <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#integer"/>
        <rdfs:label xml:lang="en-us">xdcount-value</rdfs:label>
        <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#integer"/>
        <rdfs:comment xml:lang="en-us">Integer value of the counted items.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
Element sdc4:XdCountType / units
Namespace No namespace
Annotations

The name or type of the items counted. Examples are cigarettes, drinks, pregnancies, episodes, widgets, etc. May or may not come from a standard terminology.

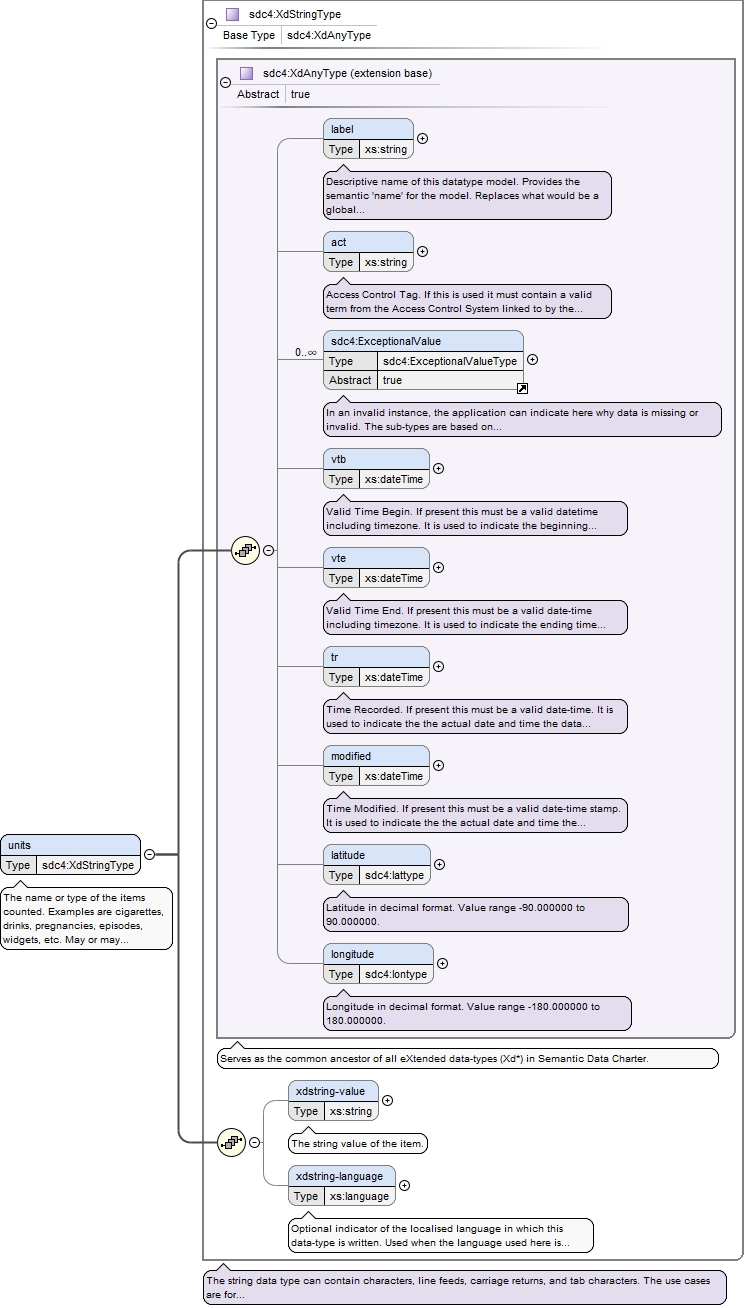

Diagram
Diagramsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_labelsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_actsdc4_xsd_Element_sdc4_ExceptionalValue.tmp#ExceptionalValuesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_vtbsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_vtesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_trsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_modifiedsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_latitudesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_longitudesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyTypesdc4_xsd_Complex_Type_sdc4_XdStringType.tmp#XdStringType_xdstring-valuesdc4_xsd_Complex_Type_sdc4_XdStringType.tmp#XdStringType_xdstring-languagesdc4_xsd_Complex_Type_sdc4_XdStringType.tmp#XdStringType
Type sdc4:XdStringType
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs 1
Model
Children act, label, latitude, longitude, modified, sdc4:ExceptionalValue, tr, vtb, vte, xdstring-language, xdstring-value
Instance

<units xmlns:sdc4="https://semanticdatacharter.com/ns/sdc4/">
  <label>{0,1}</label>
  <act>{0,1}</act>
  <sdc4:ExceptionalValue>{0,unbounded}</sdc4:ExceptionalValue>
  <vtb>{0,1}</vtb>
  <vte>{0,1}</vte>
  <tr>{0,1}</tr>
  <modified>{0,1}</modified>
  <latitude>{0,1}</latitude>
  <longitude>{0,1}</longitude>
  <xdstring-value>{0,1}</xdstring-value>
  <xdstring-language>{0,1}</xdstring-language>
</units>
Source

<xs:element maxOccurs="1" minOccurs="1" name="units" type="sdc4:XdStringType">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">The name or type of the items counted. Examples are cigarettes, drinks, pregnancies, episodes, widgets, etc. May or may not come from a standard terminology.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdCountType/xdcount-units">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdCountType"/>
        <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdStringType"/>
        <rdfs:label xml:lang="en-us">xdcount-units</rdfs:label>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdStringType"/>
        <rdfs:comment xml:lang="en-us">The name or type of the items counted. Examples are cigarettes, drinks, pregnancies, episodes, widgets, etc. May or may not come from a standard terminology.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
Complex Type sdc4:XdCountType
Namespace https://semanticdatacharter.com/ns/sdc4/
Annotations

Countable quantities. Used for countable types such as pregnancies and steps (taken by a physiotherapy patient), number of cigarettes smoked in a day, etc. The thing(s) being counted must be represented in the units element. Misuse:Not used for amounts of physical entities (which all have standardized units).

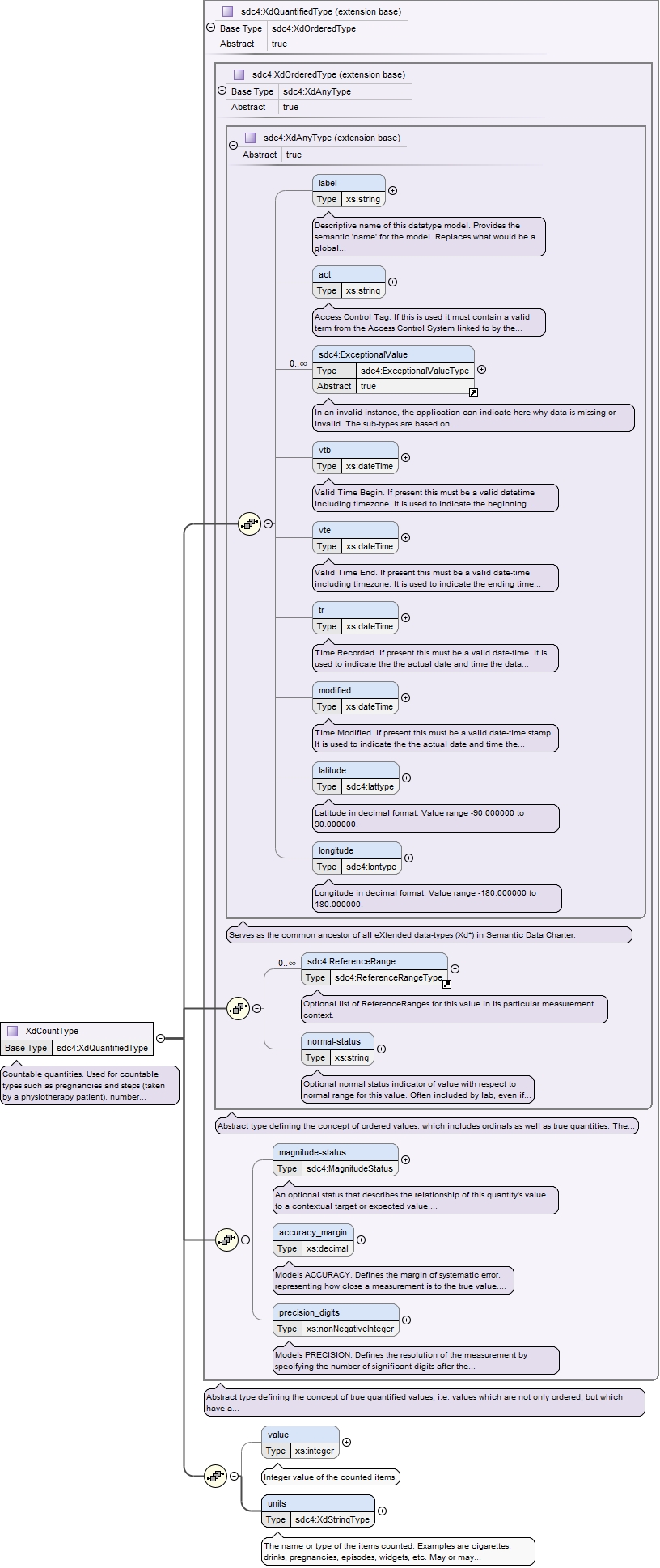

Diagram
Diagramsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_labelsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_actsdc4_xsd_Element_sdc4_ExceptionalValue.tmp#ExceptionalValuesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_vtbsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_vtesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_trsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_modifiedsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_latitudesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_longitudesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyTypesdc4_xsd_Element_sdc4_ReferenceRange.tmp#ReferenceRangesdc4_xsd_Complex_Type_sdc4_XdOrderedType.tmp#XdOrderedType_normal-statussdc4_xsd_Complex_Type_sdc4_XdOrderedType.tmp#XdOrderedTypesdc4_xsd_Complex_Type_sdc4_XdQuantifiedType.tmp#XdQuantifiedType_magnitude-statussdc4_xsd_Complex_Type_sdc4_XdQuantifiedType.tmp#XdQuantifiedType_accuracy_marginsdc4_xsd_Complex_Type_sdc4_XdQuantifiedType.tmp#XdQuantifiedType_precision_digitssdc4_xsd_Complex_Type_sdc4_XdQuantifiedType.tmp#XdQuantifiedTypesdc4_xsd_Complex_Type_sdc4_XdCountType.tmp#XdCountType_valuesdc4_xsd_Complex_Type_sdc4_XdCountType.tmp#XdCountType_units
Type extension of sdc4:XdQuantifiedType
Type hierarchy
Used by
Element sdc4:XdCount
Model
Children accuracy_margin, act, label, latitude, longitude, magnitude-status, modified, normal-status, precision_digits, sdc4:ExceptionalValue, sdc4:ReferenceRange, tr, units, value, vtb, vte
Source

<xs:complexType name="XdCountType">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Countable quantities. Used for countable types such as pregnancies and steps (taken by a physiotherapy patient), number of cigarettes smoked in a day, etc. The thing(s) being counted must be represented in the units element. Misuse:Not used for amounts of physical entities (which all have standardized units).</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdCountType">
        <rdfs:isDefinedBy rdf:resource="https://semanticdatacharter.com/docs/sdc4/sdc4_xsd_Complex_Type_sdc4_.XdCountTypehtml#XdCountType"/>
        <rdfs:subClassOf rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdQuantifiedType"/>
        <rdfs:label xml:lang="en-us">XdCountType</rdfs:label>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMC"/>
        <rdfs:comment xml:lang="en-us">Countable quantities. Used for countable types such as pregnancies and steps (taken by a physiotherapy patient), number of cigarettes smoked in a day, etc. The thing(s) being counted must be represented in the units element. Misuse:Not used for amounts of physical entities (which all have standardized units).</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="sdc4:XdQuantifiedType">
      <xs:sequence>
        <xs:element maxOccurs="1" minOccurs="0" name="value" type="xs:integer">
          <xs:annotation>
            <xs:documentation xml:lang="en-us">Integer value of the counted items.</xs:documentation>
            <xs:appinfo>
              <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdCountType/xdcount-value">
                <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdCountType"/>
                <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#integer"/>
                <rdfs:label xml:lang="en-us">xdcount-value</rdfs:label>
                <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#integer"/>
                <rdfs:comment xml:lang="en-us">Integer value of the counted items.</rdfs:comment>
              </rdf:Description>
            </xs:appinfo>
          </xs:annotation>
        </xs:element>
        <xs:element maxOccurs="1" minOccurs="1" name="units" type="sdc4:XdStringType">
          <xs:annotation>
            <xs:documentation xml:lang="en-us">The name or type of the items counted. Examples are cigarettes, drinks, pregnancies, episodes, widgets, etc. May or may not come from a standard terminology.</xs:documentation>
            <xs:appinfo>
              <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdCountType/xdcount-units">
                <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdCountType"/>
                <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdStringType"/>
                <rdfs:label xml:lang="en-us">xdcount-units</rdfs:label>
                <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdStringType"/>
                <rdfs:comment xml:lang="en-us">The name or type of the items counted. Examples are cigarettes, drinks, pregnancies, episodes, widgets, etc. May or may not come from a standard terminology.</rdfs:comment>
              </rdf:Description>
            </xs:appinfo>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
