Schema documentation for component sdc4:XdInterval

Showing:

Asserts

Diagrams

Instances

Model

Properties

Source

Element sdc4:XdInterval

Namespace

https://semanticdatacharter.com/ns/sdc4/

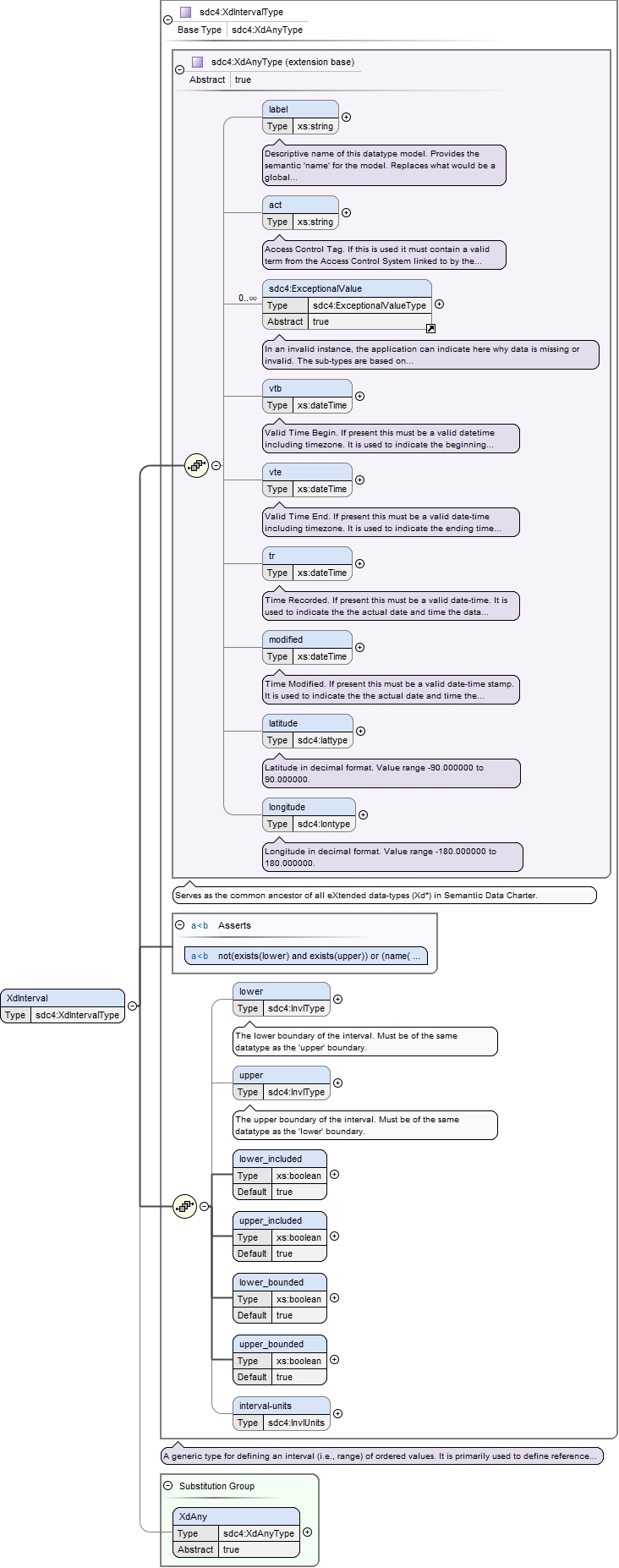

Diagram

Type

sdc4:XdIntervalType

Type hierarchy

sdc4:XdAnyType
- sdc4:XdIntervalType

Properties

content

complex

Substitution Group Affiliation

sdc4:XdAny

Model

label{0,1} , act{0,1} , sdc4:ExceptionalValue* , vtb{0,1} , vte{0,1} , tr{0,1} , modified{0,1} , latitude{0,1} , longitude{0,1} , lower{0,1} , upper{0,1} , lower_included , upper_included , lower_bounded , upper_bounded , interval-units{0,1}

Children

act, interval-units, label, latitude, longitude, lower, lower_bounded, lower_included, modified, sdc4:ExceptionalValue, tr, upper, upper_bounded, upper_included, vtb, vte

Instance

<sdc4:XdInterval xmlns:sdc4="https://semanticdatacharter.com/ns/sdc4/">
  <label>{0,1}</label>
  <act>{0,1}</act>
  <sdc4:ExceptionalValue>{0,unbounded}</sdc4:ExceptionalValue>
  <vtb>{0,1}</vtb>
  <vte>{0,1}</vte>
  <tr>{0,1}</tr>
  <modified>{0,1}</modified>
  <latitude>{0,1}</latitude>
  <longitude>{0,1}</longitude>
  <lower>{0,1}</lower>
  <upper>{0,1}</upper>
  <lower_included>{1,1}</lower_included>
  <upper_included>{1,1}</upper_included>
  <lower_bounded>{1,1}</lower_bounded>
  <upper_bounded>{1,1}</upper_bounded>
  <interval-units>{0,1}</interval-units>
</sdc4:XdInterval>

Asserts

Test	XPath default namespace	Annotation
not(exists(lower) and exists(upper)) or (name(lower/) eq name(upper/))

Source

<xs:element name="XdInterval" substitutionGroup="sdc4:XdAny" type="sdc4:XdIntervalType">
  <xs:annotation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdInterval">
        <rdfs:subClassOf rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMS"/>
        <sdc4:isCMSOf rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdIntervalType"/>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMS"/>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
