Schema documentation for component sdc4:XdLink

Showing:

Diagrams

Instances

Model

Properties

Source

Used by

Element sdc4:XdLink

Namespace

https://semanticdatacharter.com/ns/sdc4/

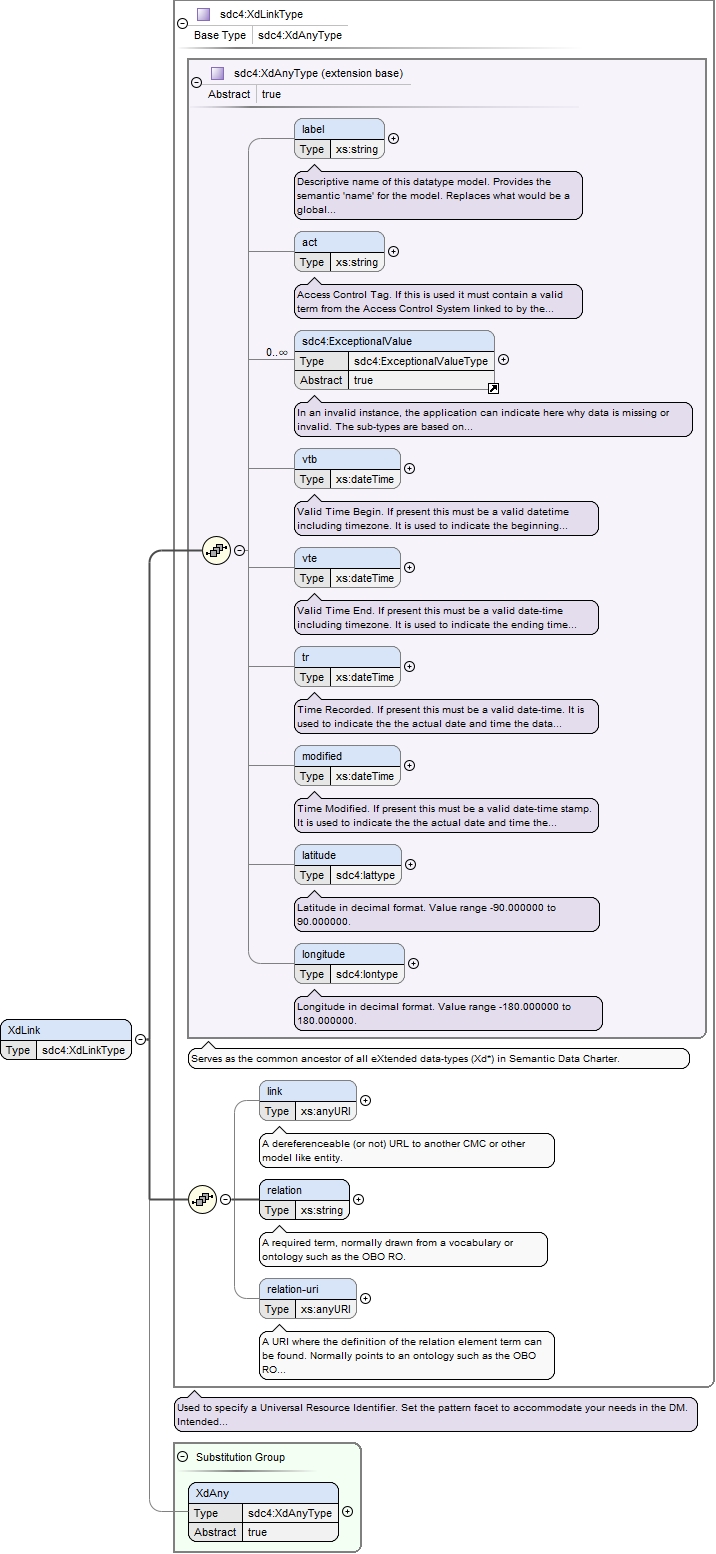

Diagram

Type

sdc4:XdLinkType

Type hierarchy

sdc4:XdAnyType
- sdc4:XdLinkType

Properties

content

complex

Substitution Group Affiliation

sdc4:XdAny

Used by

Complex Type

sdc4:DMType

Model

label{0,1} , act{0,1} , sdc4:ExceptionalValue* , vtb{0,1} , vte{0,1} , tr{0,1} , modified{0,1} , latitude{0,1} , longitude{0,1} , link{0,1} , relation , relation-uri{0,1}

Children

act, label, latitude, link, longitude, modified, relation, relation-uri, sdc4:ExceptionalValue, tr, vtb, vte

Instance

<sdc4:XdLink xmlns:sdc4="https://semanticdatacharter.com/ns/sdc4/">
  <label>{0,1}</label>
  <act>{0,1}</act>
  <sdc4:ExceptionalValue>{0,unbounded}</sdc4:ExceptionalValue>
  <vtb>{0,1}</vtb>
  <vte>{0,1}</vte>
  <tr>{0,1}</tr>
  <modified>{0,1}</modified>
  <latitude>{0,1}</latitude>
  <longitude>{0,1}</longitude>
  <link>{0,1}</link>
  <relation>{1,1}</relation>
  <relation-uri>{0,1}</relation-uri>
</sdc4:XdLink>

Source

<xs:element name="XdLink" substitutionGroup="sdc4:XdAny" type="sdc4:XdLinkType">
  <xs:annotation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdLink">
        <rdfs:subClassOf rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMS"/>
        <sdc4:isCMSOf rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdLinkType"/>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMS"/>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
