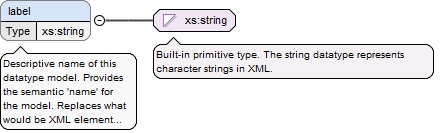

Element sdc4:DMType / label
Namespace No namespace
Annotations

Descriptive name of this datatype model. Provides the semantic 'name' for the model. Replaces what would be XML element name, column name or class name in other modeling paradigms.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element maxOccurs="1" minOccurs="0" name="label" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Descriptive name of this datatype model. Provides the semantic 'name' for the model. Replaces what would be XML element name, column name or class name in other modeling paradigms.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/label">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
        <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:label xml:lang="en-us">label</rdfs:label>
        <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:comment xml:lang="en-us">Descriptive name of this datatype model. Provides the semantic 'name' for the model. Replaces what would be XML element name, column name or class name in other modeling paradigms.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

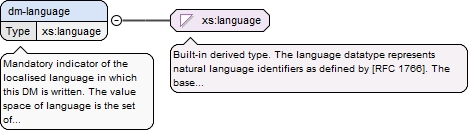

Element sdc4:DMType / dm-language
Namespace No namespace
Annotations

Mandatory indicator of the localised language in which this DM is written. The value space of language is the set of all strings that are valid language identifiers as defined [RFC 3066].
Diagram
Diagram
Type xs:language
Properties
content simple
minOccurs 1
maxOccurs 1
Source

<xs:element maxOccurs="1" minOccurs="1" name="dm-language" type="xs:language">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Mandatory indicator of the localised language in which this DM is written. The value space of language is the set of all strings that are valid language identifiers as defined [RFC 3066].</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/dm-language">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
        <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#language"/>
        <rdfs:label xml:lang="en-us">dm-language</rdfs:label>
        <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#language"/>
        <rdfs:comment xml:lang="en-us">Mandatory indicator of the localised language in which this DM is written. The value space of language is the set of all strings that are valid language identifiers as defined [RFC 3066].</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

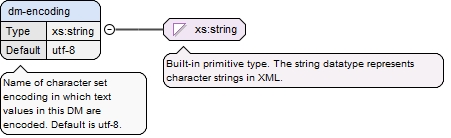

Element sdc4:DMType / dm-encoding
Namespace No namespace
Annotations

Name of character set encoding in which text values in this DM are encoded. Default is utf-8.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 1
maxOccurs 1
default utf-8
Source

<xs:element maxOccurs="1" minOccurs="1" name="dm-encoding" type="xs:string" default="utf-8">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Name of character set encoding in which text values in this DM are encoded. Default is utf-8.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/dm-encoding">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
        <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:label xml:lang="en-us">dm-encoding</rdfs:label>
        <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:comment xml:lang="en-us">Name of character set encoding in which text values in this DM are encoded. Default is utf-8.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

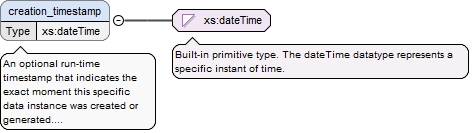

Element sdc4:DMType / creation_timestamp
Namespace No namespace
Annotations

An optional run-time timestamp that indicates the exact moment this specific data instance was created or generated.
This element provides a definitive point-in-time reference for the data payload itself.
It is distinct from the design-time Dublin Core metadata which describes the model definition.
This timestamp is crucial for data versioning, caching, and synchronization in distributed systems.
Diagram
Diagram
Type xs:dateTime
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element maxOccurs="1" minOccurs="0" name="creation_timestamp" type="xs:dateTime">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">An optional run-time timestamp that indicates the exact moment this specific data instance was created or generated. This element provides a definitive point-in-time reference for the data payload itself. It is distinct from the design-time Dublin Core metadata which describes the model definition. This timestamp is crucial for data versioning, caching, and synchronization in distributed systems.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/creation_timestamp">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
        <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#dateTime"/>
        <rdfs:label xml:lang="en-us">creation_timestamp</rdfs:label>
        <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#dateTime"/>
        <rdfs:comment xml:lang="en-us">The run-time timestamp for the data instance, distinct from the design-time date of the schema definition.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

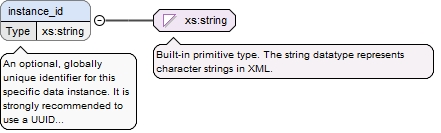

Element sdc4:DMType / instance_id
Namespace No namespace
Annotations

An optional, globally unique identifier for this specific data instance. It is strongly recommended to use a UUID (Universally Unique Identifier).
This ID provides a persistent identity for the data that is decoupled from any storage or transport mechanism (e.g., filename, database primary key).
It is essential for reliably tracking, updating, and referencing data in distributed systems, message queues, and data aggregation platforms.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element maxOccurs="1" minOccurs="0" name="instance_id" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">An optional, globally unique identifier for this specific data instance. It is strongly recommended to use a UUID (Universally Unique Identifier). This ID provides a persistent identity for the data that is decoupled from any storage or transport mechanism (e.g., filename, database primary key). It is essential for reliably tracking, updating, and referencing data in distributed systems, message queues, and data aggregation platforms.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/instance_id">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
        <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:label xml:lang="en-us">instance_id</rdfs:label>
        <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:comment xml:lang="en-us">A globally unique identifier for this data instance, recommended to be a UUID.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

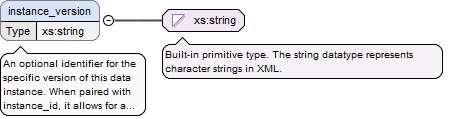

Element sdc4:DMType / instance_version
Namespace No namespace
Annotations

An optional identifier for the specific version of this data instance.
When paired with instance_id, it allows for a complete version history of a single data record.
The type is a string to accommodate various versioning schemes, such as simple integers ('1', '2'), semantic versioning ('1.2.1'), or timestamps.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element maxOccurs="1" minOccurs="0" name="instance_version" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">An optional identifier for the specific version of this data instance. When paired with instance_id, it allows for a complete version history of a single data record. The type is a string to accommodate various versioning schemes, such as simple integers ('1', '2'), semantic versioning ('1.2.1'), or timestamps.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/instance_version">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
        <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:label xml:lang="en-us">instance_version</rdfs:label>
        <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:comment xml:lang="en-us">An identifier for the specific version of this data instance.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

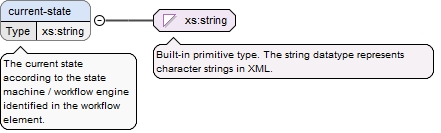

Element sdc4:DMType / current-state
Namespace No namespace
Annotations

The current state according to the state machine / workflow engine identified in the workflow element.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element maxOccurs="1" minOccurs="0" name="current-state" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">The current state according to the state machine / workflow engine identified in the workflow element.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/current-state">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
        <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:label xml:lang="en-us">current-state</rdfs:label>
        <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:comment xml:lang="en-us">The current state according to the state machine / workflow engine identified in the workflow element.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

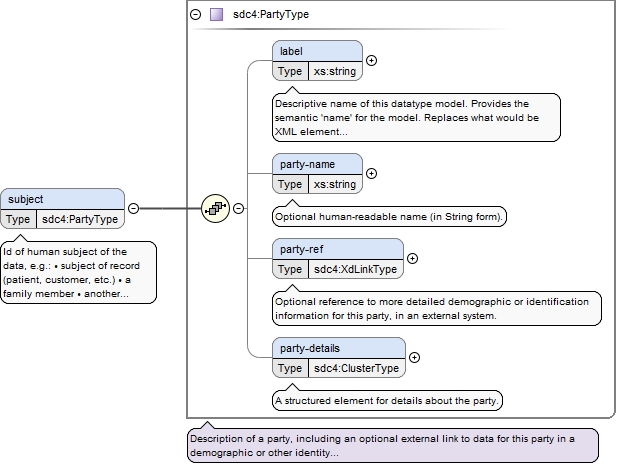

Element sdc4:DMType / subject
Namespace No namespace
Annotations

Id of human subject of the data, e.g.: • subject of record (patient, customer, etc.) • a family member • another clinically relevant person.
Diagram
Diagramsdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType_labelsdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType_party-namesdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType_party-refsdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType_party-detailssdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType
Type sdc4:PartyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children label, party-details, party-name, party-ref
Instance

<subject>
  <label>{0,1}</label>
  <party-name>{0,1}</party-name>
  <party-ref>{0,1}</party-ref>
  <party-details>{0,1}</party-details>
</subject>
Source

<xs:element maxOccurs="1" minOccurs="0" name="subject" type="sdc4:PartyType">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Id of human subject of the data, e.g.: • subject of record (patient, customer, etc.) • a family member • another clinically relevant person.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/subject">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
        <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
        <rdfs:label xml:lang="en-us">subject</rdfs:label>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
        <rdfs:comment xml:lang="en-us">Id of human subject of the data, e.g.: • subject of record (patient, customer, etc.) • a family member • another clinically relevant person.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
Element sdc4:DMType / provider
Namespace No namespace
Annotations

Optional identification of the source of the information, which might be: • a patient • a patient agent, e.g. parent, guardian • a clinician • a technician • a device or software
Diagram
Diagramsdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType_labelsdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType_party-namesdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType_party-refsdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType_party-detailssdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType
Type sdc4:PartyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children label, party-details, party-name, party-ref
Instance

<provider>
  <label>{0,1}</label>
  <party-name>{0,1}</party-name>
  <party-ref>{0,1}</party-ref>
  <party-details>{0,1}</party-details>
</provider>
Source

<xs:element maxOccurs="unbounded" minOccurs="0" name="provider" type="sdc4:PartyType">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Optional identification of the source of the information, which might be: • a patient • a patient agent, e.g. parent, guardian • a clinician • a technician • a device or software</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/provider">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
        <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
        <rdfs:label xml:lang="en-us">provider</rdfs:label>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
        <rdfs:comment xml:lang="en-us">Optional identification of the source of the information, which might be: • a patient • a patient agent, e.g. parent, guardian • a clinician • a technician • a device or software</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

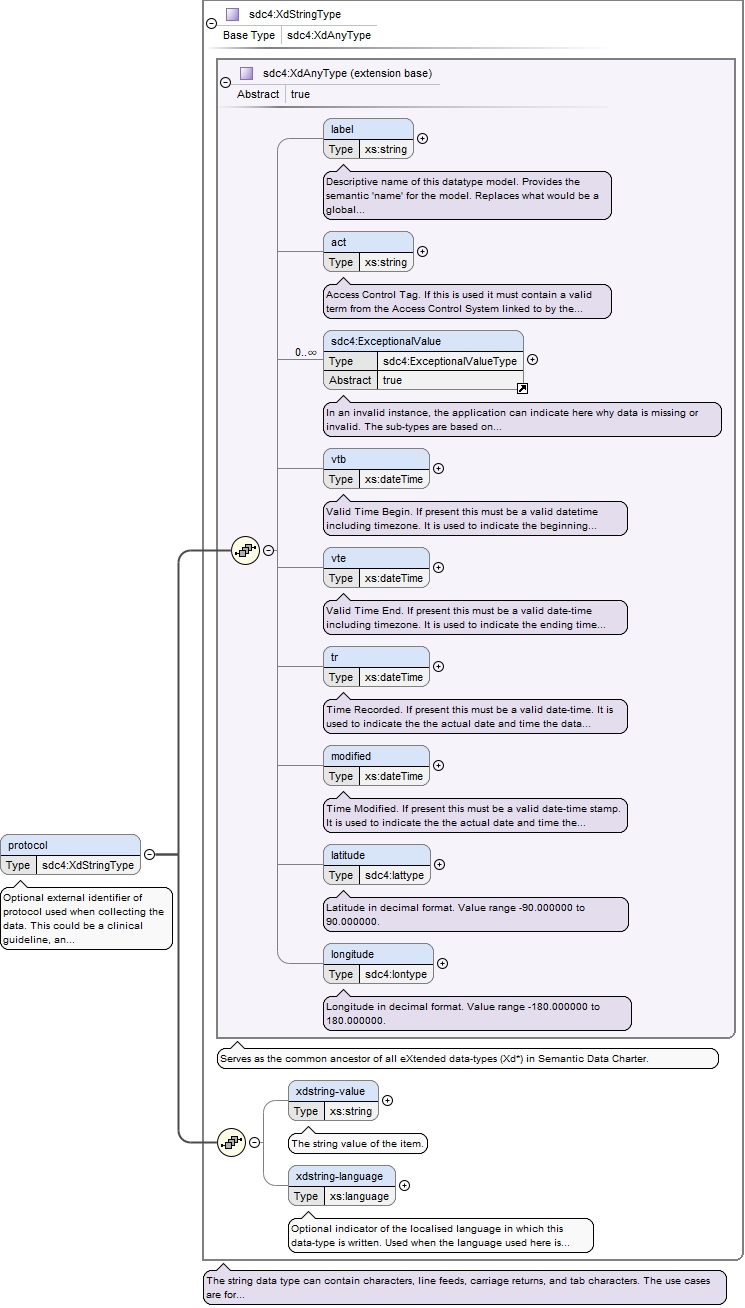

Element sdc4:DMType / protocol
Namespace No namespace
Annotations

Optional external identifier of protocol used when collecting the data. This could be a clinical guideline, an operations protocol,etc.
Diagram
Diagramsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_labelsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_actsdc4_xsd_Element_sdc4_ExceptionalValue.tmp#ExceptionalValuesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_vtbsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_vtesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_trsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_modifiedsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_latitudesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_longitudesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyTypesdc4_xsd_Complex_Type_sdc4_XdStringType.tmp#XdStringType_xdstring-valuesdc4_xsd_Complex_Type_sdc4_XdStringType.tmp#XdStringType_xdstring-languagesdc4_xsd_Complex_Type_sdc4_XdStringType.tmp#XdStringType
Type sdc4:XdStringType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children act, label, latitude, longitude, modified, sdc4:ExceptionalValue, tr, vtb, vte, xdstring-language, xdstring-value
Instance

<protocol xmlns:sdc4="https://semanticdatacharter.com/ns/sdc4/">
  <label>{0,1}</label>
  <act>{0,1}</act>
  <sdc4:ExceptionalValue>{0,unbounded}</sdc4:ExceptionalValue>
  <vtb>{0,1}</vtb>
  <vte>{0,1}</vte>
  <tr>{0,1}</tr>
  <modified>{0,1}</modified>
  <latitude>{0,1}</latitude>
  <longitude>{0,1}</longitude>
  <xdstring-value>{0,1}</xdstring-value>
  <xdstring-language>{0,1}</xdstring-language>
</protocol>
Source

<xs:element maxOccurs="1" minOccurs="0" name="protocol" type="sdc4:XdStringType">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Optional external identifier of protocol used when collecting the data. This could be a clinical guideline, an operations protocol,etc.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/protocol">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
        <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdStringType"/>
        <rdfs:label xml:lang="en-us">protocol</rdfs:label>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdStringType"/>
        <rdfs:comment xml:lang="en-us">Optional external identifier of protocol used when collecting the data. This could be a clinical guideline, an operations protocol,etc.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

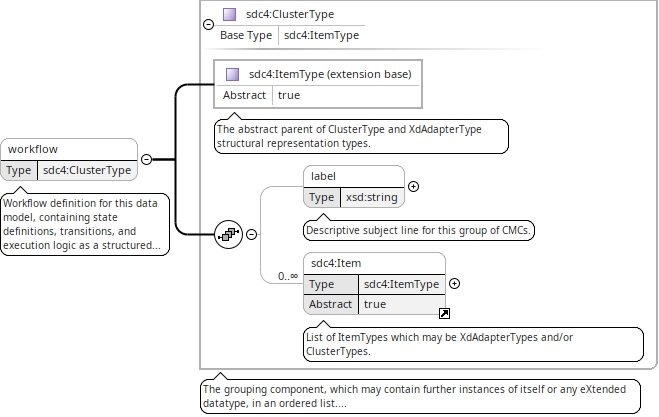

Element sdc4:DMType / workflow
Namespace No namespace
Annotations

Workflow definition for this data model, containing state definitions, transitions, and execution logic as a structured Cluster.
Diagram
Diagramsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_labelsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_actsdc4_xsd_Element_sdc4_ExceptionalValue.tmp#ExceptionalValuesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_vtbsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_vtesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_trsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_modifiedsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_latitudesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_longitudesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyTypesdc4_xsd_Complex_Type_sdc4_ClusterType.tmp#ClusterType_cluster-subjectsdc4_xsd_Complex_Type_sdc4_ClusterType.tmp#ClusterType_Itemssdc4_xsd_Complex_Type_sdc4_ClusterType.tmp#ClusterType
Type sdc4:ClusterType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children act, label, latitude, link, longitude, modified, relation, relation-uri, sdc4:ExceptionalValue, tr, vtb, vte
Instance

<workflow xmlns:sdc4="https://semanticdatacharter.com/ns/sdc4/">
  <label>{0,1}</label>
  <act>{0,1}</act>
  <sdc4:ExceptionalValue>{0,unbounded}</sdc4:ExceptionalValue>
  <vtb>{0,1}</vtb>
  <vte>{0,1}</vte>
  <tr>{0,1}</tr>
  <modified>{0,1}</modified>
  <latitude>{0,1}</latitude>
  <longitude>{0,1}</longitude>
  <link>{0,1}</link>
  <relation>{1,1}</relation>
  <relation-uri>{0,1}</relation-uri>
</workflow>
Source

<xs:element maxOccurs="1" minOccurs="0" name="workflow" type="sdc4:ClusterType">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Workflow definition for this data model, containing state definitions, transitions, and execution logic as a structured Cluster.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/workflow">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
        <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType"/>
        <rdfs:label xml:lang="en-us">workflow</rdfs:label>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType"/>
        <rdfs:comment xml:lang="en-us">Workflow definition for this data model, containing state definitions, transitions, and execution logic as a structured Cluster.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

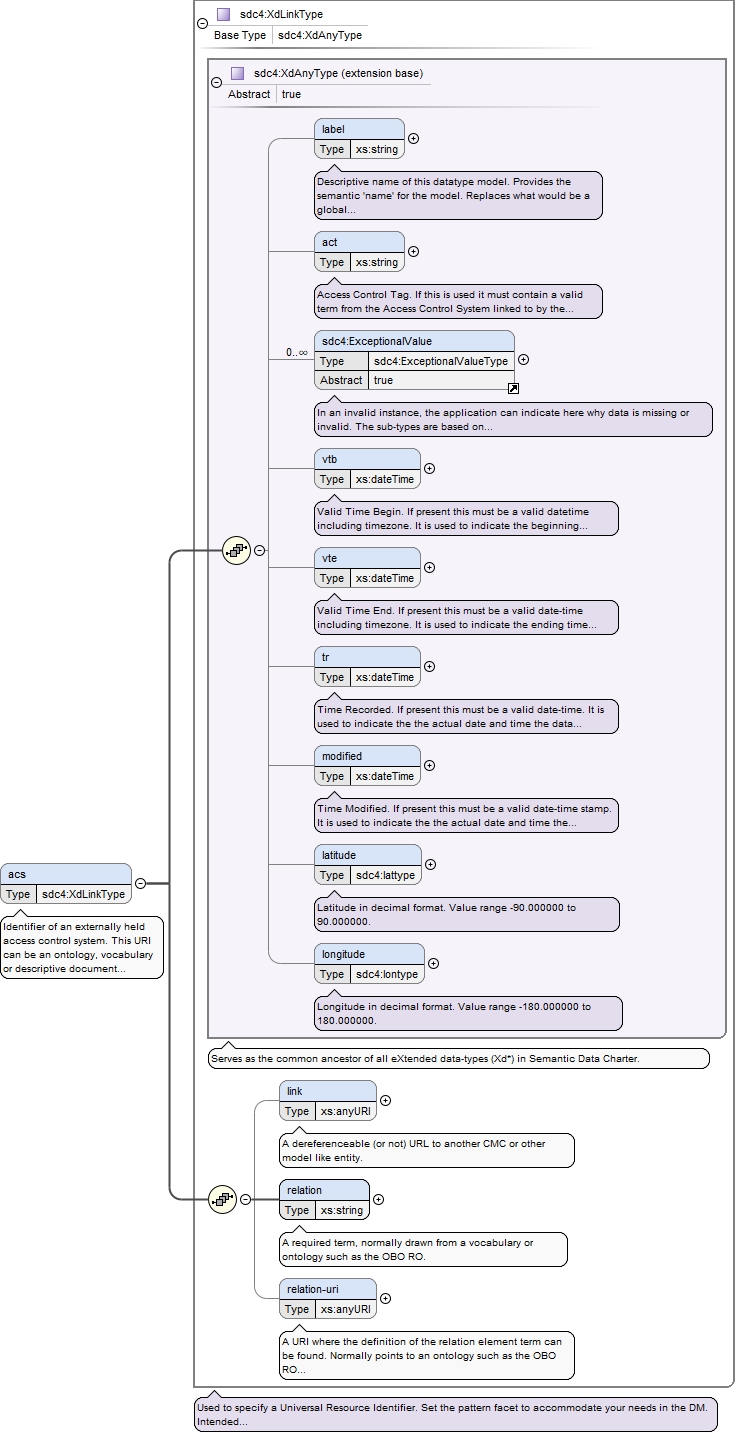

Element sdc4:DMType / acs
Namespace No namespace
Annotations

Identifier of an externally held access control system. This URI can be an ontology, vocabulary or descriptive document URI link.
Diagram
Diagramsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_labelsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_actsdc4_xsd_Element_sdc4_ExceptionalValue.tmp#ExceptionalValuesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_vtbsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_vtesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_trsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_modifiedsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_latitudesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_longitudesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyTypesdc4_xsd_Complex_Type_sdc4_ClusterType.tmp#ClusterType_cluster-subjectsdc4_xsd_Complex_Type_sdc4_ClusterType.tmp#ClusterType_Itemssdc4_xsd_Complex_Type_sdc4_ClusterType.tmp#ClusterType
Type sdc4:XdLinkType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children act, label, latitude, link, longitude, modified, relation, relation-uri, sdc4:ExceptionalValue, tr, vtb, vte
Instance

<acs xmlns:sdc4="https://semanticdatacharter.com/ns/sdc4/">
  <label>{0,1}</label>
  <act>{0,1}</act>
  <sdc4:ExceptionalValue>{0,unbounded}</sdc4:ExceptionalValue>
  <vtb>{0,1}</vtb>
  <vte>{0,1}</vte>
  <tr>{0,1}</tr>
  <modified>{0,1}</modified>
  <latitude>{0,1}</latitude>
  <longitude>{0,1}</longitude>
  <link>{0,1}</link>
  <relation>{1,1}</relation>
  <relation-uri>{0,1}</relation-uri>
</acs>
Source

<xs:element maxOccurs="1" minOccurs="0" name="acs" type="sdc4:XdLinkType">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Identifier of an externally held access control system. This URI can be an ontology, vocabulary or descriptive document URI link.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/acs">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
        <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdLinkType"/>
        <rdfs:label xml:lang="en-us">acs</rdfs:label>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdLinkType"/>
        <rdfs:comment xml:lang="en-us">Identifier of an externally held access control system. This URI can be an ontology, vocabulary or descriptive document URI link.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

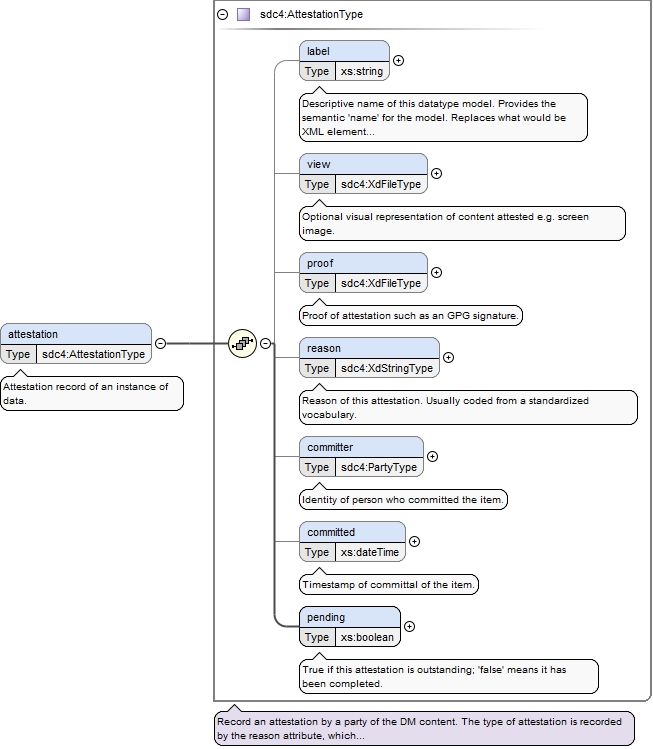

Element sdc4:DMType / attestation
Namespace No namespace
Annotations

Attestation record of an instance of data.
Diagram
Diagramsdc4_xsd_Complex_Type_sdc4_AttestationType.tmp#AttestationType_labelsdc4_xsd_Complex_Type_sdc4_AttestationType.tmp#AttestationType_viewsdc4_xsd_Complex_Type_sdc4_AttestationType.tmp#AttestationType_proofsdc4_xsd_Complex_Type_sdc4_AttestationType.tmp#AttestationType_reasonsdc4_xsd_Complex_Type_sdc4_AttestationType.tmp#AttestationType_committersdc4_xsd_Complex_Type_sdc4_AttestationType.tmp#AttestationType_committedsdc4_xsd_Complex_Type_sdc4_AttestationType.tmp#AttestationType_pendingsdc4_xsd_Complex_Type_sdc4_AttestationType.tmp#AttestationType
Type sdc4:AttestationType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children committed, committer, label, pending, proof, reason, view
Instance

<attestation>
  <label>{0,1}</label>
  <view>{0,1}</view>
  <proof>{0,1}</proof>
  <reason>{0,1}</reason>
  <committer>{0,1}</committer>
  <committed>{0,1}</committed>
  <pending>{1,1}</pending>
</attestation>
Source

<xs:element maxOccurs="1" minOccurs="0" name="attestation" type="sdc4:AttestationType">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Attestation record of an instance of data.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/attestation">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
        <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#AttestationType"/>
        <rdfs:label xml:lang="en-us">attestation</rdfs:label>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#AttestationType"/>
        <rdfs:comment xml:lang="en-us">Attestation record of an instance of data.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

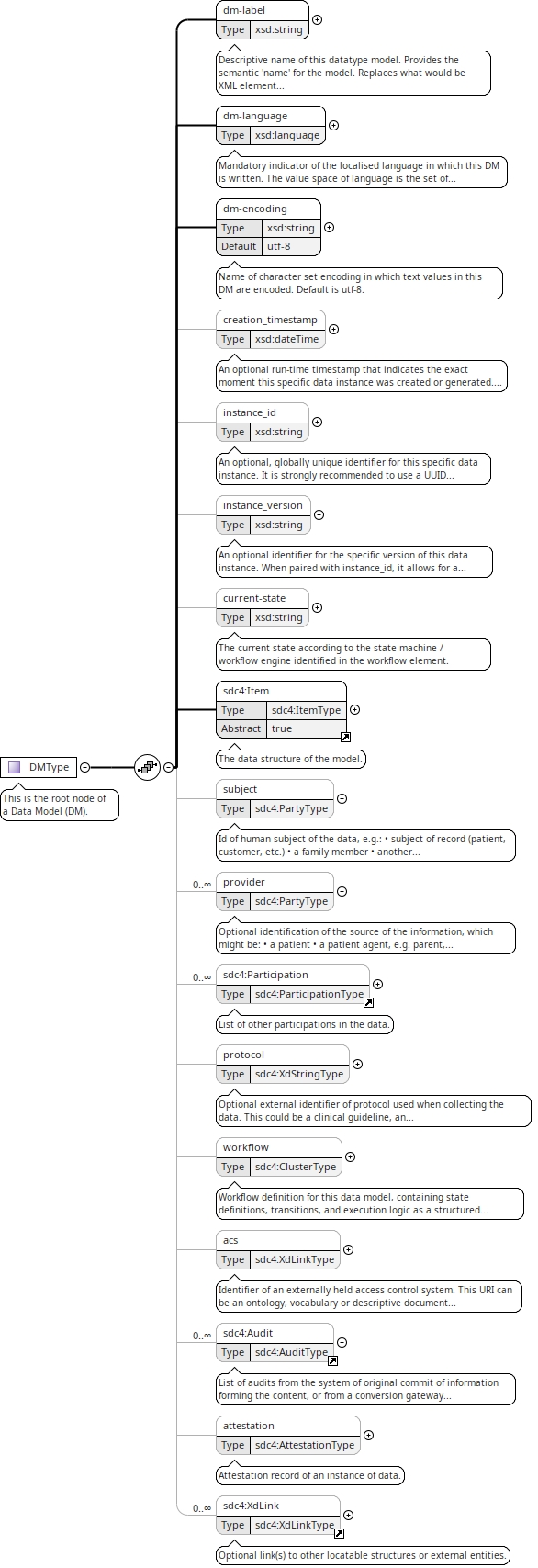

Complex Type sdc4:DMType
Namespace https://semanticdatacharter.com/ns/sdc4/
Annotations

This is the root node of a Data Model (DM).
Diagram
Diagramsdc4_xsd_Complex_Type_sdc4_DMType.tmp#DMType_labelsdc4_xsd_Complex_Type_sdc4_DMType.tmp#DMType_dm-languagesdc4_xsd_Complex_Type_sdc4_DMType.tmp#DMType_dm-encodingsdc4_xsd_Complex_Type_sdc4_DMType.tmp#DMType_creation_timestampsdc4_xsd_Complex_Type_sdc4_DMType.tmp#DMType_instance_idsdc4_xsd_Complex_Type_sdc4_DMType.tmp#DMType_instance_versionsdc4_xsd_Complex_Type_sdc4_DMType.tmp#DMType_current-statesdc4_xsd_Element_sdc4_Item.tmp#Itemsdc4_xsd_Complex_Type_sdc4_DMType.tmp#DMType_subjectsdc4_xsd_Complex_Type_sdc4_DMType.tmp#DMType_providersdc4_xsd_Element_sdc4_Participation.tmp#Participationsdc4_xsd_Complex_Type_sdc4_DMType.tmp#DMType_protocolsdc4_xsd_Complex_Type_sdc4_DMType.tmp#DMType_workflowsdc4_xsd_Complex_Type_sdc4_DMType.tmp#DMType_acssdc4_xsd_Element_sdc4_Audit.tmp#Auditsdc4_xsd_Complex_Type_sdc4_DMType.tmp#DMType_attestationsdc4_xsd_Element_sdc4_XdLink.tmp#XdLink
Used by
Element sdc4:DM
Model
Children acs, attestation, creation_timestamp, current-state, dm-encoding, dm-language, instance_id, instance_version, label, protocol, provider, sdc4:Audit, sdc4:Item, sdc4:Participation, sdc4:XdLink, subject, workflow
Source

<xs:complexType name="DMType">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">This is the root node of a Data Model (DM).</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType">
        <rdfs:isDefinedBy rdf:resource="https://semanticdatacharter.com/docs/sdc4/sdc4_xsd_Complex_Type_sdc4_DMType.html#DMType"/>
        <rdfs:label xml:lang="en-us">DMType</rdfs:label>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMC"/>
        <rdfs:comment xml:lang="en-us">This is the root node of a Data Model.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
  <xs:sequence>
    <xs:element maxOccurs="1" minOccurs="0" name="label" type="xs:string">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">Descriptive name of this datatype model. Provides the semantic 'name' for the model. Replaces what would be XML element name, column name or class name in other modeling paradigms.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/label">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:label xml:lang="en-us">label</rdfs:label>
            <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:comment xml:lang="en-us">Descriptive name of this datatype model. Provides the semantic 'name' for the model. Replaces what would be XML element name, column name or class name in other modeling paradigms.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="1" name="dm-language" type="xs:language">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">Mandatory indicator of the localised language in which this DM is written. The value space of language is the set of all strings that are valid language identifiers as defined [RFC 3066].</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/dm-language">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#language"/>
            <rdfs:label xml:lang="en-us">dm-language</rdfs:label>
            <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#language"/>
            <rdfs:comment xml:lang="en-us">Mandatory indicator of the localised language in which this DM is written. The value space of language is the set of all strings that are valid language identifiers as defined [RFC 3066].</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="1" name="dm-encoding" type="xs:string" default="utf-8">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">Name of character set encoding in which text values in this DM are encoded. Default is utf-8.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/dm-encoding">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:label xml:lang="en-us">dm-encoding</rdfs:label>
            <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:comment xml:lang="en-us">Name of character set encoding in which text values in this DM are encoded. Default is utf-8.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="creation_timestamp" type="xs:dateTime">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">An optional run-time timestamp that indicates the exact moment this specific data instance was created or generated. This element provides a definitive point-in-time reference for the data payload itself. It is distinct from the design-time Dublin Core metadata which describes the model definition. This timestamp is crucial for data versioning, caching, and synchronization in distributed systems.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/creation_timestamp">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#dateTime"/>
            <rdfs:label xml:lang="en-us">creation_timestamp</rdfs:label>
            <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#dateTime"/>
            <rdfs:comment xml:lang="en-us">The run-time timestamp for the data instance, distinct from the design-time date of the schema definition.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="instance_id" type="xs:string">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">An optional, globally unique identifier for this specific data instance. It is strongly recommended to use a UUID (Universally Unique Identifier). This ID provides a persistent identity for the data that is decoupled from any storage or transport mechanism (e.g., filename, database primary key). It is essential for reliably tracking, updating, and referencing data in distributed systems, message queues, and data aggregation platforms.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/instance_id">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:label xml:lang="en-us">instance_id</rdfs:label>
            <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:comment xml:lang="en-us">A globally unique identifier for this data instance, recommended to be a UUID.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="instance_version" type="xs:string">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">An optional identifier for the specific version of this data instance. When paired with instance_id, it allows for a complete version history of a single data record. The type is a string to accommodate various versioning schemes, such as simple integers ('1', '2'), semantic versioning ('1.2.1'), or timestamps.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/instance_version">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:label xml:lang="en-us">instance_version</rdfs:label>
            <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:comment xml:lang="en-us">An identifier for the specific version of this data instance.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="current-state" type="xs:string">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">The current state according to the state machine / workflow engine identified in the workflow element.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/current-state">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:label xml:lang="en-us">current-state</rdfs:label>
            <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:comment xml:lang="en-us">The current state according to the state machine / workflow engine identified in the workflow element.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="1" ref="sdc4:Item">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">The data structure of the model.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/data">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ItemType"/>
            <rdfs:label xml:lang="en-us">data</rdfs:label>
            <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ItemType"/>
            <rdfs:comment xml:lang="en-us">The data structure of the model.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="subject" type="sdc4:PartyType">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">Id of human subject of the data, e.g.: • subject of record (patient, customer, etc.) • a family member • another clinically relevant person.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/subject">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
            <rdfs:label xml:lang="en-us">subject</rdfs:label>
            <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
            <rdfs:comment xml:lang="en-us">Id of human subject of the data, e.g.: • subject of record (patient, customer, etc.) • a family member • another clinically relevant person.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="unbounded" minOccurs="0" name="provider" type="sdc4:PartyType">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">Optional identification of the source of the information, which might be: • a patient • a patient agent, e.g. parent, guardian • a clinician • a technician • a device or software</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/provider">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
            <rdfs:label xml:lang="en-us">provider</rdfs:label>
            <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
            <rdfs:comment xml:lang="en-us">Optional identification of the source of the information, which might be: • a patient • a patient agent, e.g. parent, guardian • a clinician • a technician • a device or software</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="unbounded" minOccurs="0" ref="sdc4:Participation">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">List of other participations in the data.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/participations">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ParticipationType"/>
            <rdfs:label xml:lang="en-us">participations</rdfs:label>
            <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ParticipationType"/>
            <rdfs:comment xml:lang="en-us">List of other participations in the data.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="protocol" type="sdc4:XdStringType">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">Optional external identifier of protocol used when collecting the data. This could be a clinical guideline, an operations protocol,etc.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/protocol">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdStringType"/>
            <rdfs:label xml:lang="en-us">protocol</rdfs:label>
            <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdStringType"/>
            <rdfs:comment xml:lang="en-us">Optional external identifier of protocol used when collecting the data. This could be a clinical guideline, an operations protocol,etc.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="workflow" type="sdc4:ClusterType">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">Workflow definition for this data model, containing state definitions, transitions, and execution logic as a structured Cluster.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/workflow">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType"/>
            <rdfs:label xml:lang="en-us">workflow</rdfs:label>
            <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType"/>
            <rdfs:comment xml:lang="en-us">Workflow definition for this data model, containing state definitions, transitions, and execution logic as a structured Cluster.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="acs" type="sdc4:XdLinkType">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">Identifier of an externally held access control system. This URI can be an ontology, vocabulary or descriptive document URI link.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/acs">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdLinkType"/>
            <rdfs:label xml:lang="en-us">acs</rdfs:label>
            <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdLinkType"/>
            <rdfs:comment xml:lang="en-us">Identifier of an externally held access control system. This URI can be an ontology, vocabulary or descriptive document URI link.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="unbounded" minOccurs="0" ref="sdc4:Audit">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">List of audits from the system of original commit of information forming the content, or from a conversion gateway which has processed this data.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/audit">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#AuditType"/>
            <rdfs:label xml:lang="en-us">audits</rdfs:label>
            <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#AuditType"/>
            <rdfs:comment xml:lang="en-us">List of audits from the system of original commit of information forming the content, or from a conversion gateway which has processed this data.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="attestation" type="sdc4:AttestationType">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">Attestation record of an instance of data.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/attestation">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#AttestationType"/>
            <rdfs:label xml:lang="en-us">attestation</rdfs:label>
            <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#AttestationType"/>
            <rdfs:comment xml:lang="en-us">Attestation record of an instance of data.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="unbounded" minOccurs="0" ref="sdc4:XdLink">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">Optional link(s) to other locatable structures or external entities.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType/links">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#DMType"/>
            <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdLink"/>
            <rdfs:label xml:lang="en-us">links</rdfs:label>
            <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdLinkType"/>
            <rdfs:comment xml:lang="en-us">Optional link(s) to other locatable structures or external entities.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor Trial Edition.
