Schema documentation for component units-name

Showing:

Annotations

Diagrams

Model

Properties

Source

Used by

Element sdc4:InvlUnits / units-name

Namespace

No namespace

Diagram

Type

xs:string

Properties

content

simple

Source

<xs:element name="units-name" type="xs:string"/>

Element sdc4:InvlUnits / units-uri

Namespace

No namespace

Diagram

Type

xs:anyURI

Properties

content

simple

Source

<xs:element name="units-uri" type="xs:anyURI"/>

Complex Type sdc4:InvlUnits

Namespace

https://semanticdatacharter.com/ns/sdc4/

Annotations

The units designation for an Interval. This is composed of a units name and a URI because a ReferenceRange can contain intervals with different units (e.g., a temperature range in Celsius and another in Fahrenheit).

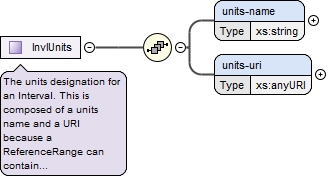

Diagram

Used by

Element

sdc4:XdIntervalType/interval-units

Model

units-name , units-uri

Children

units-name, units-uri

Source

<xs:complexType name="InvlUnits">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">The units designation for an Interval. This is composed of a units name and a URI because a ReferenceRange can contain intervals with different units (e.g., a temperature range in Celsius and another in Fahrenheit).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="units-name" type="xs:string"/>
    <xs:element name="units-uri" type="xs:anyURI"/>
  </xs:sequence>
</xs:complexType>
