Element sdc4:ClusterType / label
Namespace No namespace
Annotations
Descriptive subject line for this group of CMCs.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 0
maxOccurs 1
Source
<xs:element maxOccurs="1" minOccurs="0" name="label" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Descriptive subject line for this group of CMCs.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType/label">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType"/>
        <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:label xml:lang="en-us">label</rdfs:label>
        <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:comment xml:lang="en-us">Descriptive subject line for this group of CMCs.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
Complex Type sdc4:ClusterType
Namespace https://semanticdatacharter.com/ns/sdc4/
Annotations
The grouping component, which may contain further instances of itself or any eXtended datatype, in an ordered list. This can serve as the root component for arbitrarily complex structures.

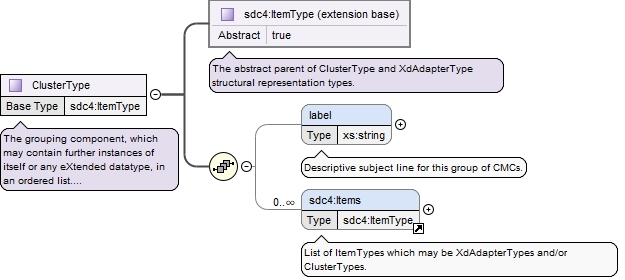

Diagram
Diagramsdc4_xsd_Complex_Type_sdc4_ItemType.tmp#ItemTypesdc4_xsd_Complex_Type_sdc4_ClusterType.tmp#ClusterType_labelsdc4_xsd_Element_sdc4_Items.tmp#Items
Type extension of sdc4:ItemType
Type hierarchy
Used by
Model
Children label, sdc4:Items
Source
<xs:complexType name="ClusterType">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">The grouping component, which may contain further instances of itself or any eXtended datatype, in an ordered list. This can serve as the root component for arbitrarily complex structures.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType">
        <rdfs:isDefinedBy rdf:resource="https://semanticdatacharter.com/docs/sdc4/sdc4_xsd_Complex_Type_sdc4_ClusterType.html#ClusterType"/>
        <rdfs:subClassOf rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ItemType"/>
        <rdfs:label xml:lang="en-us">ClusterType</rdfs:label>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMC"/>
        <rdfs:comment xml:lang="en-us">The grouping component, which may contain further instances of itself or any eXtended datatype, in an ordered list. This can serve as the root component for arbitrarily complex structures.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="sdc4:ItemType">
      <xs:sequence>
        <xs:element maxOccurs="1" minOccurs="0" name="label" type="xs:string">
          <xs:annotation>
            <xs:documentation xml:lang="en-us">Descriptive subject line for this group of CMCs.</xs:documentation>
            <xs:appinfo>
              <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType/label">
                <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType"/>
                <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
                <rdfs:label xml:lang="en-us">label</rdfs:label>
                <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
                <rdfs:comment xml:lang="en-us">Descriptive subject line for this group of CMCs.</rdfs:comment>
              </rdf:Description>
            </xs:appinfo>
          </xs:annotation>
        </xs:element>
        <xs:element maxOccurs="unbounded" minOccurs="0" ref="sdc4:Items">
          <xs:annotation>
            <xs:documentation xml:lang="en-us">List of ItemTypes which may be XdAdapterTypes and/or ClusterTypes.</xs:documentation>
            <xs:appinfo>
              <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType/Items">
                <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType"/>
                <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ItemType"/>
                <rdfs:label xml:lang="en-us">items</rdfs:label>
                <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ItemType"/>
                <rdfs:comment xml:lang="en-us">List of ItemTypes which may be XdAdapterTypes and/or ClusterTypes.</rdfs:comment>
              </rdf:Description>
            </xs:appinfo>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
