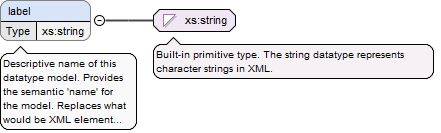

Element sdc4:PartyType / label
Namespace No namespace
Annotations

Descriptive name of this datatype model. Provides the semantic 'name' for the model. Replaces what would be XML element name or class name in conventional modeling.
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element maxOccurs="1" minOccurs="0" name="label" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Descriptive name of this datatype model. Provides the semantic 'name' for the model. Replaces what would be XML element name or class name in conventional modeling.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType/label">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
        <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:label xml:lang="en-us">label</rdfs:label>
        <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:comment xml:lang="en-us">Descriptive name of this datatype model. Provides the semantic 'name' for the model. Replaces what would be XML element name or class name in conventional modeling.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>
Element sdc4:PartyType / party-name
Namespace No namespace
Annotations

Optional human-readable name (in String form).
Diagram
Diagram
Type xs:string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<xs:element maxOccurs="1" minOccurs="0" name="party-name" type="xs:string">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Optional human-readable name (in String form).</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType/party-name">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
        <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:label xml:lang="en-us">party-name</rdfs:label>
        <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
        <rdfs:comment xml:lang="en-us">Optional human-readable name (in String form).</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

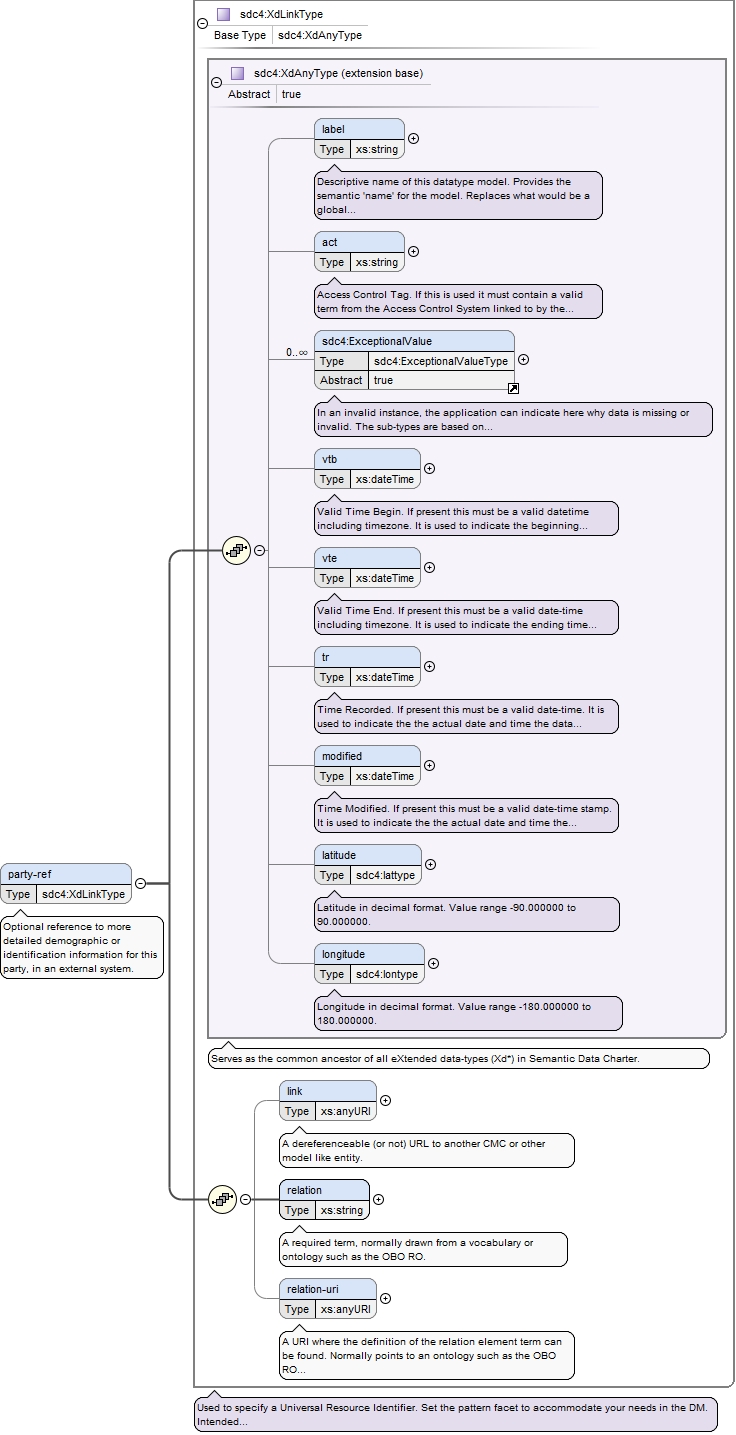

Element sdc4:PartyType / party-ref
Namespace No namespace
Annotations

Optional reference to more detailed demographic or identification information for this party, in an external system.
Diagram
Diagramsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_labelsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_actsdc4_xsd_Element_sdc4_ExceptionalValue.tmp#ExceptionalValuesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_vtbsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_vtesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_trsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_modifiedsdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_latitudesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyType_longitudesdc4_xsd_Complex_Type_sdc4_XdAnyType.tmp#XdAnyTypesdc4_xsd_Complex_Type_sdc4_XdLinkType.tmp#XdLinkType_linksdc4_xsd_Complex_Type_sdc4_XdLinkType.tmp#XdLinkType_relationsdc4_xsd_Complex_Type_sdc4_XdLinkType.tmp#XdLinkType_relation-urisdc4_xsd_Complex_Type_sdc4_XdLinkType.tmp#XdLinkType
Type sdc4:XdLinkType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children act, label, latitude, link, longitude, modified, relation, relation-uri, sdc4:ExceptionalValue, tr, vtb, vte
Instance

<party-ref xmlns:sdc4="https://semanticdatacharter.com/ns/sdc4/">
  <label>{0,1}</label>
  <act>{0,1}</act>
  <sdc4:ExceptionalValue>{0,unbounded}</sdc4:ExceptionalValue>
  <vtb>{0,1}</vtb>
  <vte>{0,1}</vte>
  <tr>{0,1}</tr>
  <modified>{0,1}</modified>
  <latitude>{0,1}</latitude>
  <longitude>{0,1}</longitude>
  <link>{0,1}</link>
  <relation>{1,1}</relation>
  <relation-uri>{0,1}</relation-uri>
</party-ref>
Source

<xs:element maxOccurs="1" minOccurs="0" name="party-ref" type="sdc4:XdLinkType">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Optional reference to more detailed demographic or identification information for this party, in an external system.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType/party-ref">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
        <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdLinkType"/>
        <rdfs:label xml:lang="en-us">party-ref</rdfs:label>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdLinkType"/>
        <rdfs:comment xml:lang="en-us">Optional reference to more detailed demographic or identification information for this party, in an external system.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

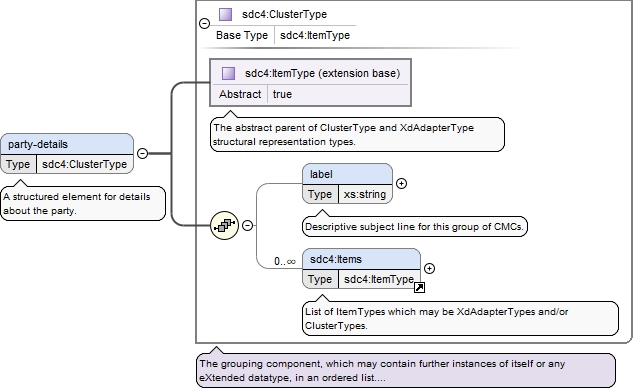

Element sdc4:PartyType / party-details
Namespace No namespace
Annotations

A structured element for details about the party.
Diagram
Diagramsdc4_xsd_Complex_Type_sdc4_ItemType.tmp#ItemTypesdc4_xsd_Complex_Type_sdc4_ClusterType.tmp#ClusterType_labelsdc4_xsd_Element_sdc4_Items.tmp#Itemssdc4_xsd_Complex_Type_sdc4_ClusterType.tmp#ClusterType
Type sdc4:ClusterType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children label, sdc4:Items
Instance

<party-details xmlns:sdc4="https://semanticdatacharter.com/ns/sdc4/">
  <label>{0,1}</label>
  <sdc4:Items>{0,unbounded}</sdc4:Items>
</party-details>
Source

<xs:element maxOccurs="1" minOccurs="0" name="party-details" type="sdc4:ClusterType">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">A structured element for details about the party.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType/party-details">
        <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
        <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType"/>
        <rdfs:label xml:lang="en-us">party-details</rdfs:label>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType"/>
        <rdfs:comment xml:lang="en-us">A structured element for details about the party.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
</xs:element>

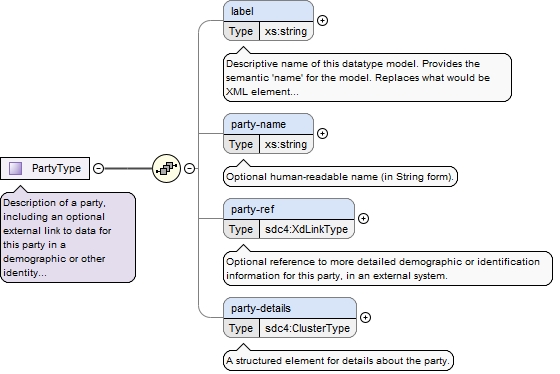

Complex Type sdc4:PartyType
Namespace https://semanticdatacharter.com/ns/sdc4/
Annotations

Description of a party, including an optional external link to data for this party in a demographic or other identity management system. An additional details element provides for the inclusion of information related to this party directly. If the party
information is to be anonymous then do not include the details element.
Diagram
Diagramsdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType_labelsdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType_party-namesdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType_party-refsdc4_xsd_Complex_Type_sdc4_PartyType.tmp#PartyType_party-details
Used by
Model
Children label, party-details, party-name, party-ref
Source

<xs:complexType name="PartyType">
  <xs:annotation>
    <xs:documentation xml:lang="en-us">Description of a party, including an optional external link to data for this party in a demographic or other identity management system. An additional details element provides for the inclusion of information related to this party directly. If the party information is to be anonymous then do not include the details element.</xs:documentation>
    <xs:appinfo>
      <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType">
        <rdfs:isDefinedBy rdf:resource="https://semanticdatacharter.com/docs/sdc4/sdc4_xsd_Complex_Type_sdc4_PartyType.html#PartyType"/>
        <rdfs:label xml:lang="en-us">PartyType</rdfs:label>
        <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4/CMC"/>
        <rdfs:comment xml:lang="en-us">Description of a party, including an optional external link to data for this party in a demographic or other identity management system. An additional details element provides for the inclusion of information related to this party directly. If the party information is to be anonymous then do not include the details element.</rdfs:comment>
      </rdf:Description>
    </xs:appinfo>
  </xs:annotation>
  <xs:sequence>
    <xs:element maxOccurs="1" minOccurs="0" name="label" type="xs:string">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">Descriptive name of this datatype model. Provides the semantic 'name' for the model. Replaces what would be XML element name or class name in conventional modeling.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType/label">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
            <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:label xml:lang="en-us">label</rdfs:label>
            <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:comment xml:lang="en-us">Descriptive name of this datatype model. Provides the semantic 'name' for the model. Replaces what would be XML element name or class name in conventional modeling.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="party-name" type="xs:string">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">Optional human-readable name (in String form).</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType/party-name">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
            <rdfs:range rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:label xml:lang="en-us">party-name</rdfs:label>
            <rdf:type rdf:resource="http://www.w3.org/2001/XMLSchema#string"/>
            <rdfs:comment xml:lang="en-us">Optional human-readable name (in String form).</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="party-ref" type="sdc4:XdLinkType">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">Optional reference to more detailed demographic or identification information for this party, in an external system.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType/party-ref">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
            <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdLinkType"/>
            <rdfs:label xml:lang="en-us">party-ref</rdfs:label>
            <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#XdLinkType"/>
            <rdfs:comment xml:lang="en-us">Optional reference to more detailed demographic or identification information for this party, in an external system.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="party-details" type="sdc4:ClusterType">
      <xs:annotation>
        <xs:documentation xml:lang="en-us">A structured element for details about the party.</xs:documentation>
        <xs:appinfo>
          <rdf:Description rdf:about="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType/party-details">
            <rdfs:domain rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#PartyType"/>
            <rdfs:range rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType"/>
            <rdfs:label xml:lang="en-us">party-details</rdfs:label>
            <rdf:type rdf:resource="https://semanticdatacharter.com/ns/sdc4/sdc4.xsd#ClusterType"/>
            <rdfs:comment xml:lang="en-us">A structured element for details about the party.</rdfs:comment>
          </rdf:Description>
        </xs:appinfo>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
